2026/2126 Professional II Filter
Two Trays
If stock foam is used, remove fine filter from top and use as fine filter in bottom tray. Place both foams on the bottom of the bottom tray.
Eheim specified filter volume is 4.9 lt (299 cu in). If half of this is used (149.5 cu in) for Biohome it would require:
2026/2126 Filter Capacity Assuming 1 Tray is Used | |
Media | Media Required |
Standard | 2 kg |
Plus | 2 kg |
Mini | 1.8 kg |
Ultra | 2 kg |
Ultimate | 1.8 kg |
MAXI | 1.9 kg |
BioMotion | 2.5 lt |

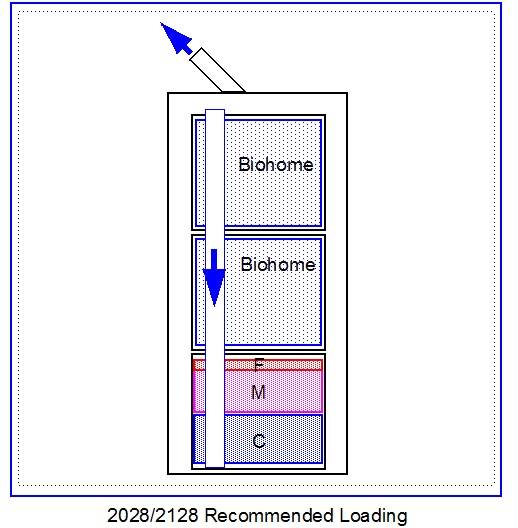

Eheim 2028/2128 Professional II Filter
Three Trays
If stock foam is used, remove fine filter from top and use as fine filter in bottom tray.
Eheim specified filter volume is 7.3 lt (445.5 cu in). If 2/3rd of this is used (294 cu in) for Biohome it would require:
2028/2128 Filter Capacity Assuming 2 Trays are Used | |
Media | Media Required |
Standard | 4.2 kg |
Plus | 4 kg |
Mini | 3.5 kg |
Ultra | 4 kg |
Ultimate | 3.5 kg |
MAXI | 3.8 kg |
BioMotion | 4.8 lt |

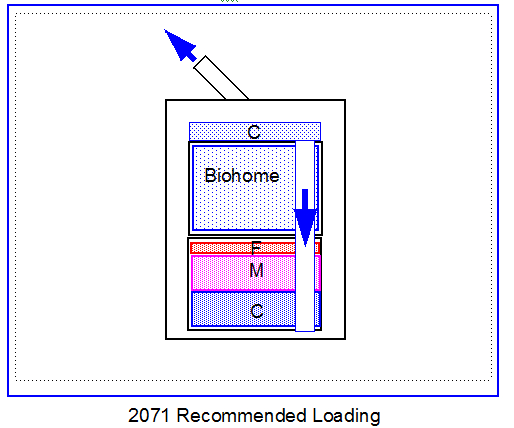

Eheim 2×71 Professional 3, 4 250/250T Filter
Two Trays
The Eheim Professional 3-4 Series has a coarse filter pad at the top that the water passes through before entering a passage that takes it to the bottom. It is recommended that you leave this in place.
If stock foam is used, remove fine filter from the top tray and a use as fine filter in the bottom tray.
Eheim specified filter volume is 3 lt (183 cu in). If 1/2 of this is used (91.5 cu in) for Biohome it would require:
2071 Filter Capacity Assuming 1 Tray is Used | |
Media | Media Required |
Standard | 1.3 kg |
Plus | 1.3 kg |
Mini | 1 kg |
Ultimate | 1 kg |
BioGravel | 2 kg |
Note: Feedback from Dimitri indicates the filter will hold 1.25 kgs of Ultimate

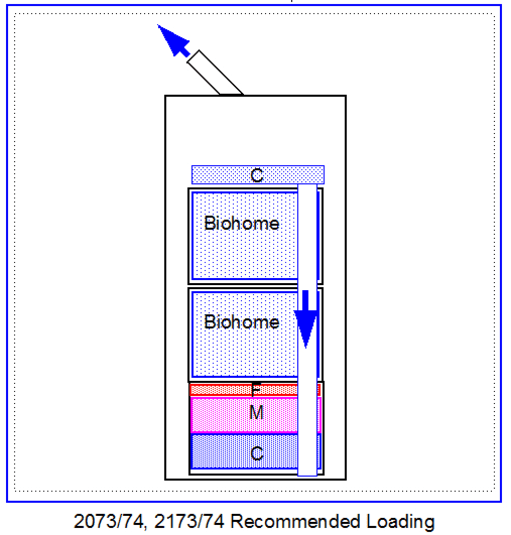

Eheim 2×73 Professional 3-4 350 Filter
Three Trays
The Eheim Professional 3-4 Series has a coarse filter pad at the top that the water passes through before entering a passage that takes it to the bottom. It is recommended that you leave this in place.
If stock foam is used, remove fine filter from the top tray and use as fine filter in the bottom tray.
Eheim specified filter volume is 4.5 lt (275 cu in). If 2/3rds of this is used (183 cu in) for Biohome it would require:
2073/4, 2173/74 Filter Capacity Assuming 2 Trays are Used | |
Media | Media Required |
Standard | 2.6 kg |
Plus | 2.6 kg |
Mini | 2 kg |
Ultimate | 2 kg |
BioGravel | 5 kg |
Note: These are estimates based on Eheim specifications. It is possible the filter will hold somewhat less than this if the volume occupied by the tray has not been accounted for.
If you have actual experience with this filter, GreatWave would be greatly appreciative to learn how much media the filter actually holds.
Eheim 2×75 Professional 3-4 600 (G160) Filter
Four Trays
The Eheim Professional 3-4 Series has a coarse filter pad at the top that the water passes through before entering a passage that takes it to the bottom. It is recommended that you leave this in place.
If stock foam is used, remove fine filter from the top tray and use as fine filter in the bottom tray.
Eheim specified filter volume is 6 lt (366 cu in). If 3/4ths of this is used (274 cu in) for Biohome it would require:
2075 Filter Capacity Assuming 3 Trays are Used | |
Media | Media Required |
Standard | 4 kg |
Plus | 4 kg |
Mini | 3.3 kg |
Ultimate | 3.3 kg |
BioGravel | 7 kg |
Note: These are estimates based on Eheim specifications. It is possible the filter will hold somewhat less than this if the volume occupied by the tray has not been accounted for.
If you have actual experience with this filter, GreatWave would be greatly appreciative to learn how much media the filter actually holds.
Eheim 2080/2180 Series, 1200XL & 1200XLT Filters
Three Trays
The Eheim Professional 3 Series has a coarse filter pad at the top that the water passes through before entering a passage that takes it to the bottom. It is recommended that you leave this in place.
If stock foam is used, remove fine filter from the top tray and use as fine filter in the bottom tray.
Eheim specified filter volume is 12 lt (732 cu in). If 2/3rds of this is used (488 cu in) for Biohome it would require:
2080 Filter Capacity Assuming 3 Trays are Used | |
Media | Media Required |
Standard | 7 kg |
Plus | 7 kg |
Mini | 6 kg |
Ultimate | 6 kg |
Ultra | 6/7 kg |
MAXI | 6.7 kg |
BioMotion | 8 lt |
Note: These are estimates based on Eheim specifications. It is possible the filter will hold somewhat less than this if the volume occupied by the tray has not been accounted for.
If you have actual experience with this filter, GreatWave would be greatly appreciative to learn how much media the filter actually holds.
However, the Eheim media kit contains 8 lt (488 cu in) of Substrate Bio Media which would indicate these estimates are correct.

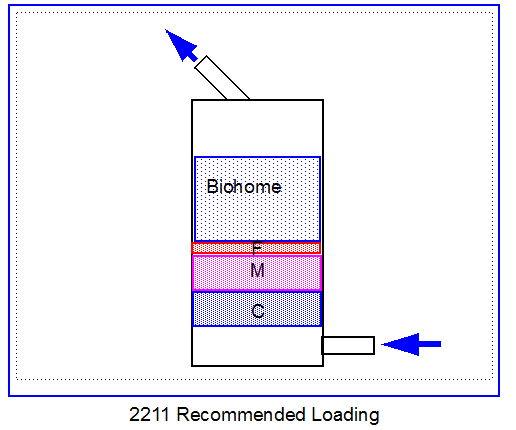

2211 150 Filter
If stock foam is used, remove fine filter from the top and use as fine filter in the bottom
Eheim specified filter volume is 1 lt (61 cu in). If 2/3rds of this is used (41 cu in) for Biohome it would require:
2211 Filter Capacity | |
Media | Media Required |
Standard | 500 gr |
Plus | 500 gr |
Mini | 500 gr |
Ultimate | 500 gr |
BioMotion | 500 ml |
Note: These are estimates based on Eheim specifications. If you have actual experience with this filter, GreatWave would be greatly appreciative to learn how much media the filter actually holds.

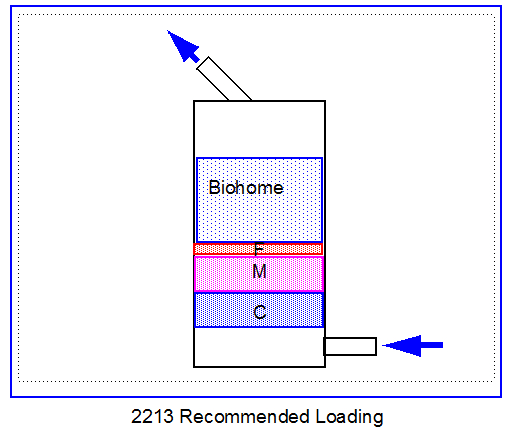

2213 250 Filter
If stock foam is used, place at the bottom of the canister.
Eheim specified filter volume is 3 lt (183 cu in). If 2/3rds of this is used (122 cu in) for Biohome it would require:
2013 Filter Capacity | |
Media | Media Required |
Standard | 1.7 kg |
Plus | 1.7 kg |
Mini | 1.5 kg |
Ultimate | 1.5 kg |
BioMotion | 2 lt |
Note: These are estimates based on Eheim specifications. If you have actual experience with this filter, GreatWave would be greatly appreciative to learn how much media the filter actually holds.

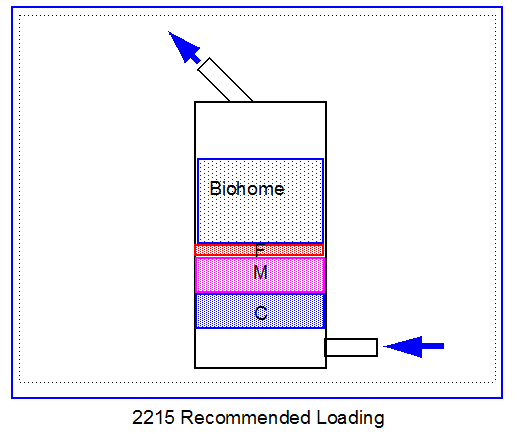

2215 350 Filter
If stock foam is used, place at the bottom of the canister.
Eheim specified filter volume is 4 lt (244cu in). If 2/3rds of this is used (162 cu in) for Biohome it would require:
2215 Filter Capacity | |
Media | Media Required |
Standard | 2 kg |
Plus | 2 kg |
Mini | 2 kg |
Ultimate | 2 kg |
BioMotion | 2.5 lt |
Note: These are estimates based on Eheim specifications. If you have actual experience with this filter, GreatWave would be greatly appreciative to learn how much media the filter actually holds.
2217 600 Filter
If stock foam is used, place at the bottom of the canister.
Eheim specified filter volume is 6 lt (366 cu in). If 3/4ths of this is used (275 cu in) for Biohome it would require:
2217 Filter Capacity | |
Media | Media Required |
Standard | 4 kg |
Plus | 4 kg |
Mini | 3 kg |
Ultimate | 3 kg |
BioMotion | 4.5 lt |
Note: We have rebuilt an Eheim 2217 with a GreatWave Foam Filter Set and 3 kg of Ultimate media, so we are confident that the requirements for Mini and Ultimate are correct under these circumstances.
The capacity for other media are estimates based on Eheim specifications. If you have actual experience with this filter, GreatWave would be greatly appreciative to learn how much media the filter actually holds.

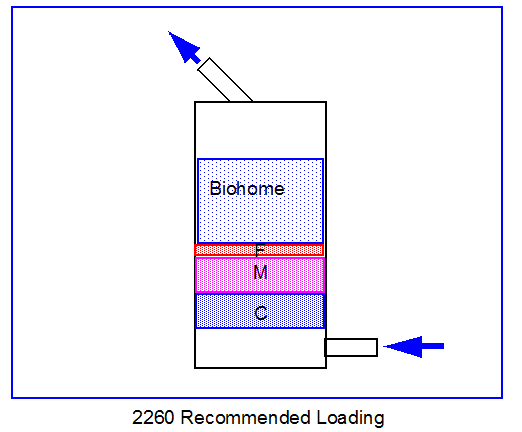

2260 1500XL Filter
2260 Filter Capacity | |
Media | Media Required |
Standard | 12 kg |
Plus | 12 kg |
Mini | 10 kg |
Ultimate | 10 kg |
Note: The capacity for other media are estimates based on Eheim specifications. If you have actual experience with this filter, GreatWave would be greatly appreciative to learn how much media the filter actually holds.

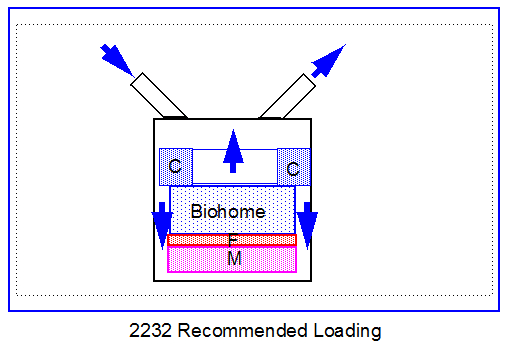

2232 Filter
Estimated biological media volume is 46 cu in.
2232 Filter Capacity | |
Media | Media Required |
All Type | 500 gr |

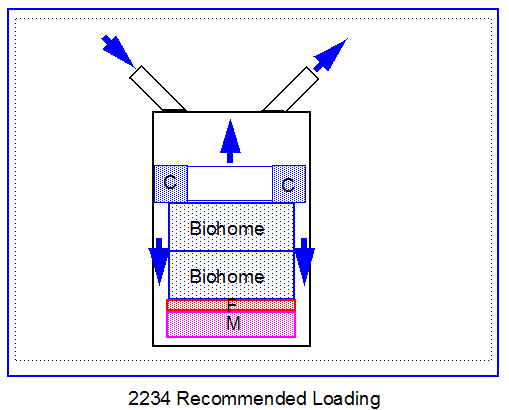

Eheim 2234 Filter
Estimated biological media volume is 105 cu in.
2234 Filter Capacity | |
Media | Media Required |
Standard | 1.5 kg |
Plus | 1.5 kg |
Mini | 1 kg |
Ultimate | 1 kg |

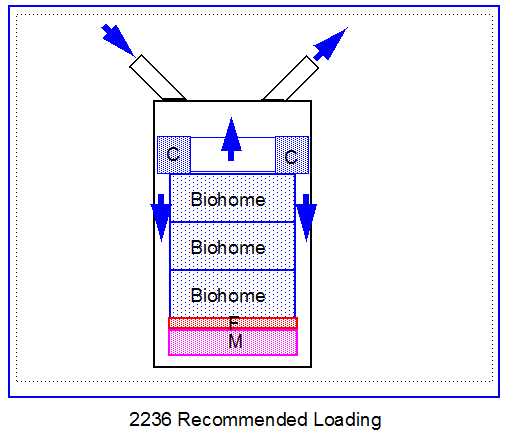

Eheim 2236 Filter
Estimated biological media volume is 151 cu in.
2236 Filter Capacity | |
Media | Media Required |
Standard | 2 kg |
Plus | 2 kg |
Mini | 2 kg |
Ultimate | 2 kg |
