Cascade Filters

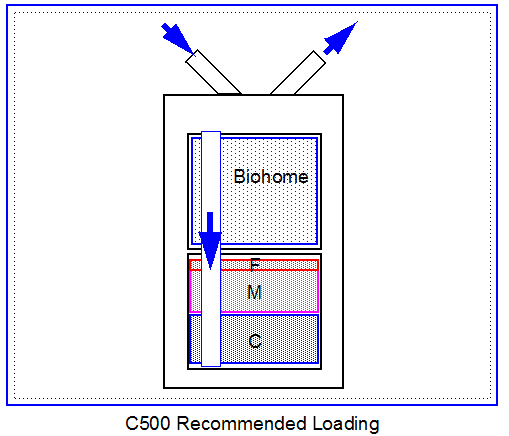

C500

Two Trays

Based on actual feedback for C1000 and overall dimensions we estimate the one tray available for biological media will hold approximately 60 cu in.

C500 Filter Capacity Assuming 1 Tray is Used
Media Media Required
Standard 1 kg
Plus 1 kg
Mini 1 kg
Ultra 1 kg
Ultimate 1 kg
MAXI 1 kg
BioGravel 1.5 kg
BioMotion 1 lt

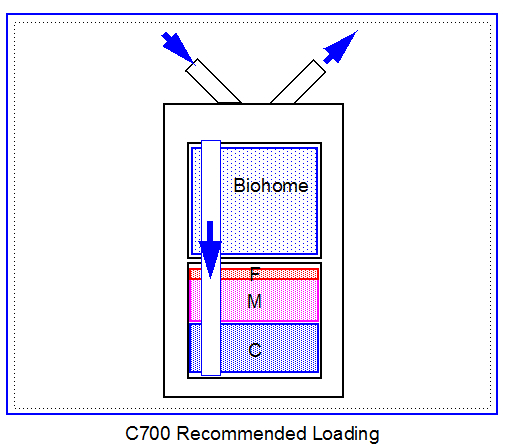

C700

Two Trays

Based on actual feedback for C1000 and overall dimensions we estimate the one tray available for biological media will hold approximately 75 cu in.

C700 Filter Capacity Assuming 1 Tray is Used
Media Media Required
Standard 1 kg
Plus 1 kg
Mini 1 kg
Ultra 1 kg
Ultimate 1 kg
MAXI 1 kg
BioGravel 1.5 kg
BioMotion 1 lt

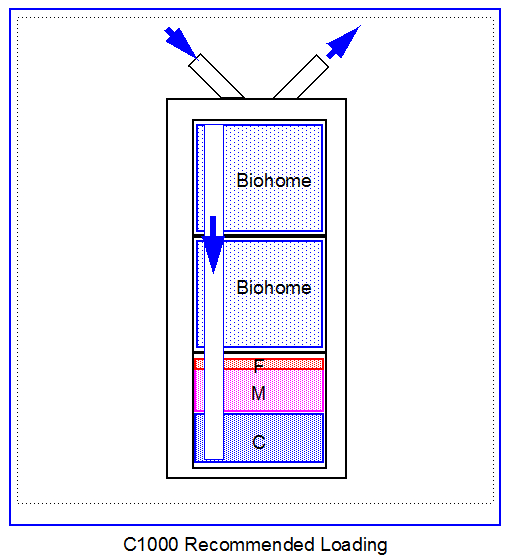

C1000

Three Trays

A customer, Frederick, reports that the Cascade 1000 Filter has three trays. Two may be used for biological media.

The trays are 7” L x 5 3/8” W x 2 3/8” H. Each tray holds 89 c in.

C1000 Filter Capacity Assuming 2 Trays are Used
Media Media Required
Standard 2.5 kg
Plus 2.5 kg
Mini 2 kg
Ultra 2.5 kg
Ultimate 2 kg
MAXI 2.5 kg
BioGravel 3.5 kg
BioMotion 3 lt

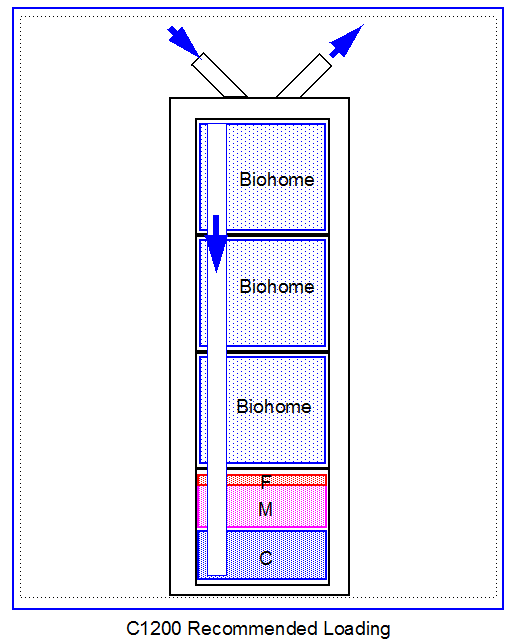

C1200

Four Trays

Based on actual feedback for C1000 and overall dimensions we estimate the trays available for biological media will hold approximately 106 cu in each.

C1200 Filter Capacity Assuming 3 Trays are Used
Media Media Required
Standard 4.5 kg
Plus 4.5 kg
Mini 4 kg
Ultra 4.5 kg
Ultimate 4 kg
MAXI 4.5 kg
BioGravel 6.5 kg
BioMotion 5 lt

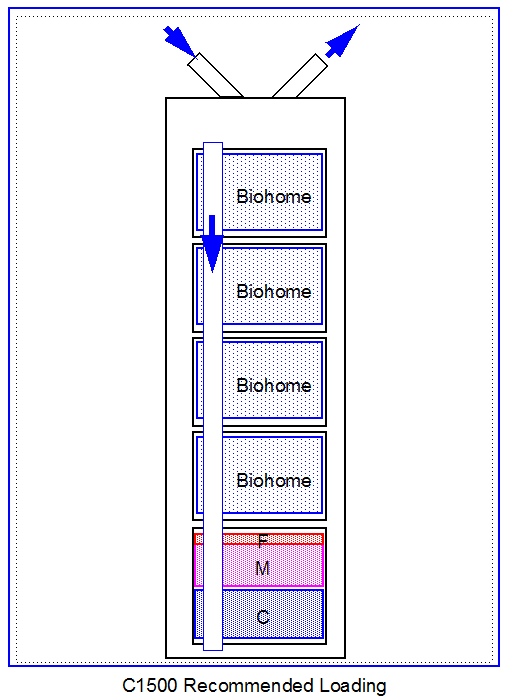

C1500

Five Trays

Based on actual feedback from Josh Marcell the trays are 6″ x 8″ x 2″  and will hold approximately 96 cu in each.

C1500 Filter Capacity Assuming 4 Trays are Used
Media Media Required
Standard 5 kg
Plus 5 kg
Mini 4 kg
Ultra 5 kg
Ultimate 4 kg
MAXI 5 kg
BioGravel 8 kg
BioMotion 6 lt
